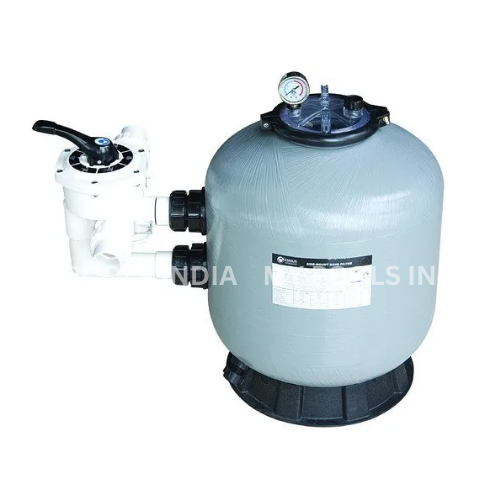

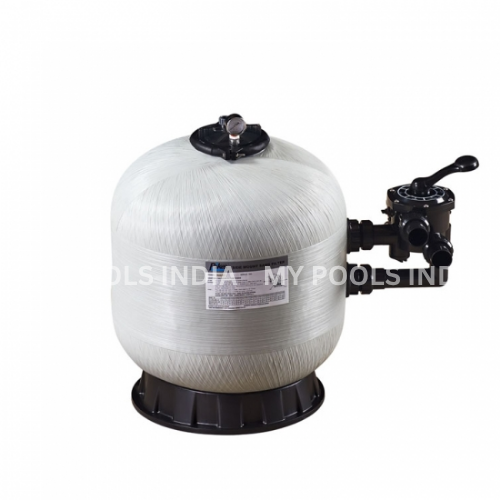

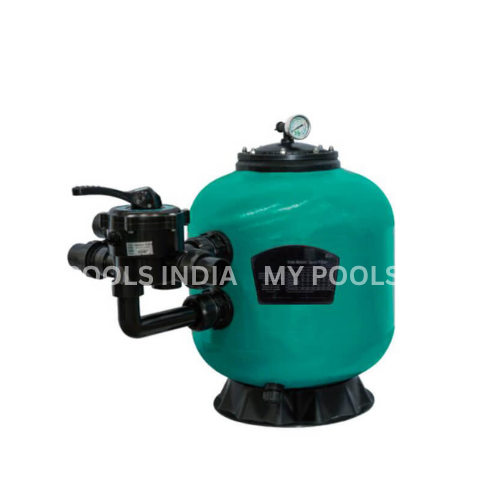

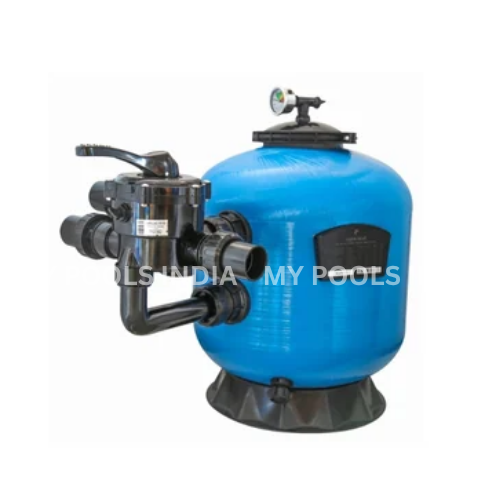

Fiberglass Side Mount Sand Filters are engineered to deliver long-lasting performance and effective filtration for residential and commercial pools. Designed with durable materials and thoughtful components, these filters ensure consistent water clarity and easy maintenance. Their side-mounted configuration makes them an ideal choice for systems requiring space optimization and convenient access.
Available with a robust PVC block top cover or a transparent polycarbonate (PC) lid for inspection flexibility and durability.
The clear cover enables quick and convenient visual inspection of the sand bed without disassembly.
Ensures even flow of water across the entire sand surface, enhancing filtration efficiency and extending media life.
The Fiberglass Side Mount Sand Filter is a reliable solution for maintaining crystal-clear water and is built to perform in various pool environments with minimal maintenance requirements.
| Model No | Tank Dia. (mm) | Height (mm) | Valve Port Size (mm) | Filter Area (m²) | Silica Sand | Design Flow (lph) |
|---|---|---|---|---|---|---|
| AS18 | 450 | 630 | 40 | 1.16 | 40 | 7980 |
| AS21 | 525 | 675 | 40 | 0.22 | 85 | 11520 |
| AS25 | 625 | 745 | 40 | 0.3 | 155 | 16200 |
| AS28 | 710 | 830 | 40 | 0.4 | 185 | 19200 |
| AS32 | 800 | 905 | 40 | 0.5 | 210 | 25200 |
| AS36 | 900 | 1005 | 40 | 0.64 | 310 | 30000 |
| AS40 | 1000 | 1085 | 40 | 0.79 | 410 | 33000 |
| AS44 | 1120 | 1195 | 40 | 0.98 | 460 | 37800 |
| AS48 | 1200 | 1325 | 40 | 0.13 | 560 | 42000 |
