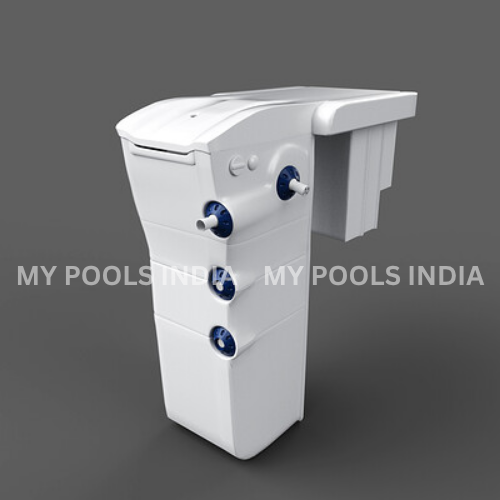

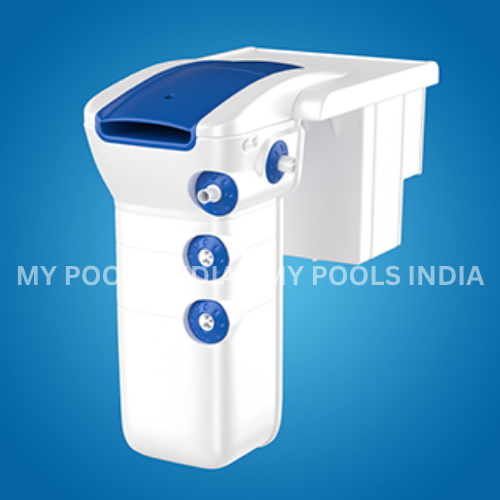

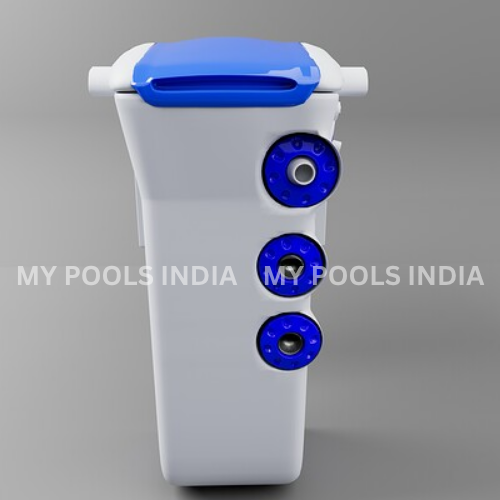

The Euro Pipeless Filter is an advanced all-in-one system designed to deliver efficient filtration, effective disinfection, and aesthetic illumination for swimming pools. Engineered for performance and convenience, this unit is mounted directly onto the pool wall, eliminating the need for extensive plumbing or backwashing, and offering a clean, modern solution for pool water management.
Built with high-quality, corrosion-resistant materials for durability and long-term use.
Compact and space-efficient, suitable for both new installations and retrofits.
Enhances pool ambiance with underwater lighting.
Provides consistent water hygiene with minimal chemical usage.
Eliminates the need for backwashing, conserving water and reducing operational costs.
Allows for quick and effective cleaning using high-pressure water.
Designed for quick setup and minimal ongoing servicing requirements.
The Euro Pipeless Filter is ideal for residential and commercial pool applications, offering a smart and streamlined approach to pool water care.
| Specification | Euro-25 | Euro-50 |
|---|---|---|
| Flow rate | 25 M3/h | 50 M3/h |
| Filter Precision | <15 um | <15 um |
| Power Supply | 220v / 50 Hz | 220v / 50 Hz |
| Outlet & Inlet | 40 mm | 40 mm |
| Filteration Pump | 1x2 HP | 2x2 HP |
| Ozone Generator | 500 mg/h | 1000 mg/h |
| Feeding basket | 2 Pc | 2 Pc |
| Jet Nossels | 2 Pc | 2 Pc |
| U/W LED Light | 18Wx12V(1 Pc) | 18Wx12V(1 Pc) |
| Counter Flow | 1 No | 1 No |
| Code | Model | Power | Filteration capacity |
|---|---|---|---|
| AF-01 | Euro 25 | 1x2 H.P | 25 m3 /h |
| AF-02 | Euro 50 | 2x2 H.P | 50 m3 /h |
